ULD Mover Weighing

Identification

• Manufacturer:

  CSI s.r.l.

• Type:

  K9 SOB XT HD 80

• Drive:

  Electric AC

• Type of operation:

  Seated

• Capacity, load:

  8,0 Q (t)

• Load centre distance:

  1300 mm

Wheels, Chassis

• Tires

  Polyurethane

• Front tires size

  400 x 140 mm

• Rear tires size

  120 x 50 mm

• Additional wheels (dimensions):

  200 x 80 mm

• Wheels number front/rear (x=drive wheels):

  1x+2/18

• Track width, rear:

  1250 mm

Basic Dimensions

• Max. lift height:

  470 mm

• Forks lowered height:

  130 mm

• Overall length:

  3795 mm

• Length to face of forks:

  1395 mm

• Overall width:

  b1 1830 mm

• Fork dimensions:

  s/e/l 80/350/2400 mm

• Forks ext. dimensions:

  b5 1760 mm

Performance Data

• Travel speed, laden/unladen:

  6 km/h

• Lift speed, laden/unladen:

  0.04/0.05 m/s

• Lowering speed, laden/unladen:

  0.26/0.06 m/s

• Service brake:

  Electric

Motor

• Drive motor rating S2 60 min:

  8 kW

• Lift motor rating at S3 15%:

  2.0 kW

• Battery voltage, normal capacity K5:

  48V/620Ah

• Battery weight:

  910 kg

• Battery dimensions:

  1200 x 340 x 760 mm (L/P/H)

Others

• Type of drive control:

  Proportional

• Sound level at driver’s ear:

  < 70 dB (A)

• Colours:

  Blue (RAL5002) / Orange (RAL2004)

Options

• Integrated weighing system with Uniwin

More Information

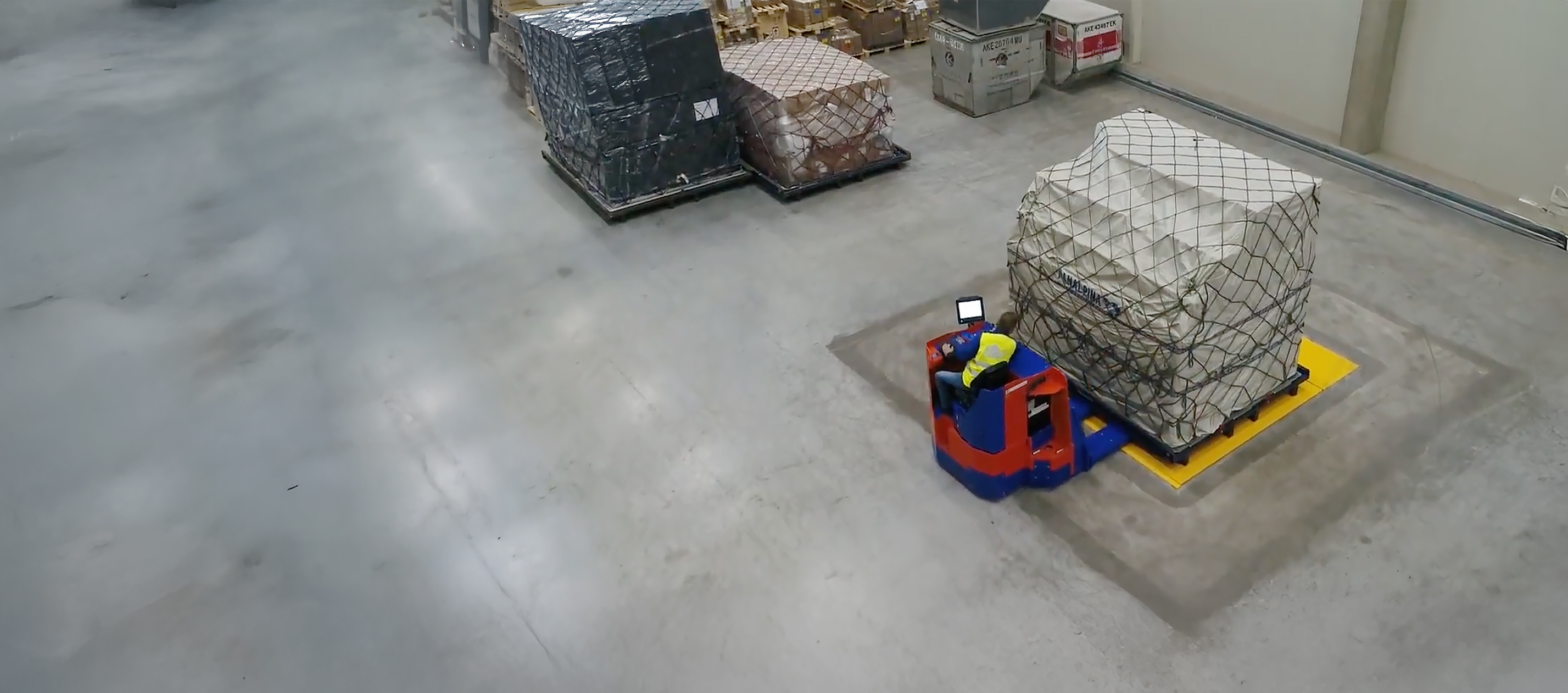

The Warehouse ULD Mover is an electric driven transporter to move slave pallets. The operator rides along the unit during the movement. A very flexible and dynamic way of moving ULD’s. Storage or build up or break down of ULD’s is possible on any location inside a warehouse. The S-P-S Warehouse ULD Mover is only suitable for indoor use on a flat warehouse floor.

The Warehouse ULD Mover can be equipped with a weighing system which is optionally connected to Uniwin, an industrial software solution which can be integrated in your overall systems, such as ERP, WMS, Warehouse Management System. Both the weighing system and Uniwin are certified “legal for trade”.

The Uniwin software is installed either on a touchscreen (stand-alone), or an application server (SQL-DB full or express), which manages an app on the touchscreen. See separate data sheet for specifications.
