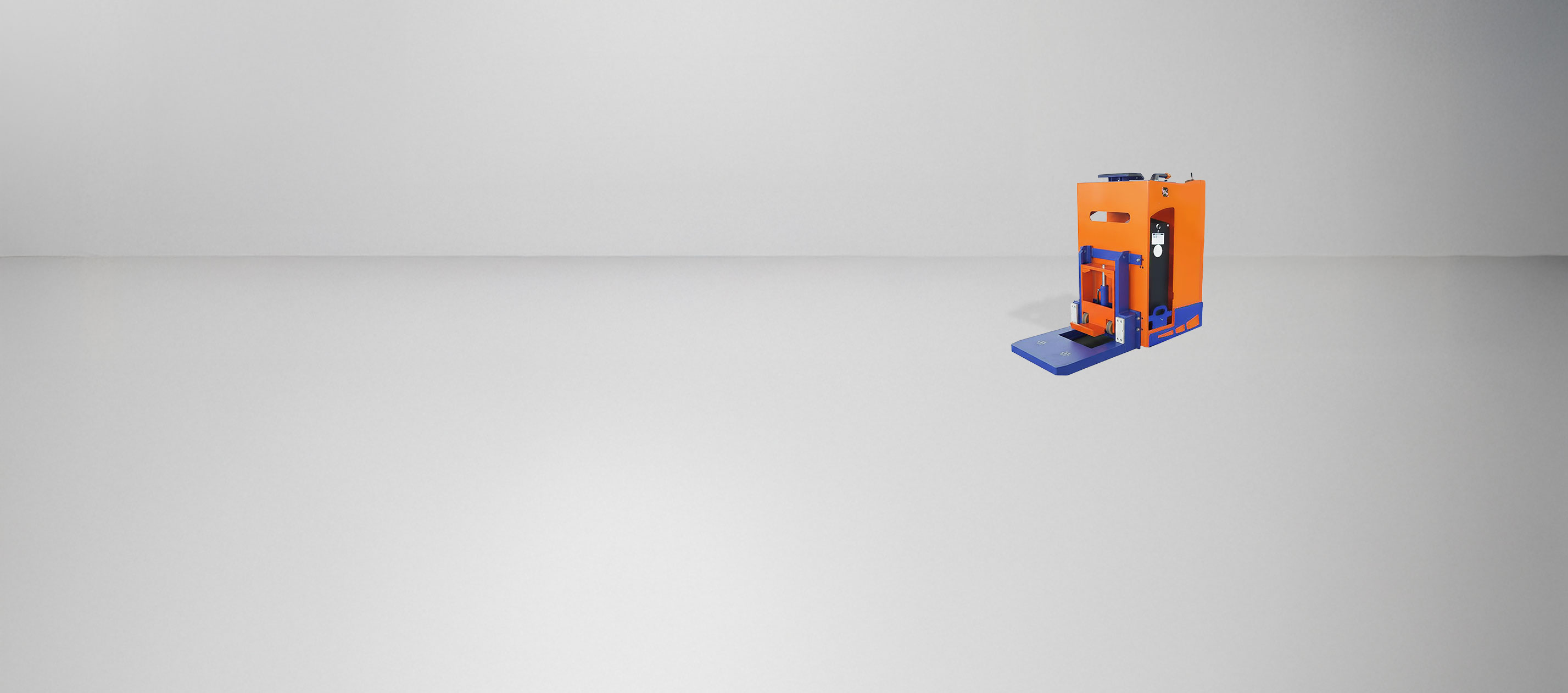

Mini Donkey

Identification

• Manufacturer:

  CSI s.r.l.

• Type:

  TRS OB XT MINIDONKEY

• Drive:

  Electric

• Type of operation:

  Handwheel

• Capacity, load:

  3-7 Q (t)

• Center of gravity c:

  85 mm

• Own weight (without battery):

  800 kg

• Load centre distance:

  1249 mm

Wheels, Chassis

• Tires

  Polyurethane

• Front wheel dimensions:

  250 x 100 mm

• Rear wheels / rollers dimensions:

  125 x 40 mm

• Additional wheels (dimensions):

  80 x 60 mm

• Number of front/ rear wheels (x=drive):

  1x / 2+1 /1

• Rear wheelbase b11:

  320 mm

• Hook heigt from the ground h13:

  35 mm

Basic Dimensions

• Lift stroke h3:

  145 mm

• Overall machine length l1:

  1605 mm

• Overall dimensions of machine body l2:

  970 mm

• Machine body width b1:

  880 mm

• Hooking dimensions l:

  137 mm

• External dimensions wheels b5:

  672 mm

• Turning radius wa:

  980 mm

Performance Data

• Travel speed w/without load:

  3/5 km/h

• Lifting speed w/without load:

  0.04/0.05 m/s

• Maximum gradient that can be overcome w/without load:

  1/1%

• Service brake:

  Electric

Motors

• Travel motor S2 60 min:

  2.5 kW

• S3 lifting motor 15%:

  2.2 kW

• Hook width:

  300 mm

• Battery DIN 43531/35/36 A,B,C:

  No

• Battery voltage and capacity K5:

  24 V

• Battery weight:

  360 kg

• Battery dimensions L/ P/ H:

  800/280/800 mm

Others

• Type of drive control:

  Proportional

• Sound level at driver’s ear:

  < 70 dB (A)

• Colours:

  Blue (RAL5002) / Orange (RAL2004)

Options

• Horn

• Flashing beacon

More Information

The S-P-S Warehouse Mini Donkey is an agile, electrically powered transporter for moving slave pallets (SP-08_1). By partially lifting, the operator rides along the unit during the movement. A very flexible, and dynamic way of moving ULD’s. Storage or build up or break down of ULD’s is possible on any location inside a warehouse.

The S-P-S Warehouse Mini Donkey is only suitable for indoor use on a flat warehouse floor.
